How to select medical tubing PVC for kink resistance
Time : Oct 06, 2026
Views:
Medical tubing PVC selection for kink resistance: compare wall thickness, bend radius, connectors, and real routing conditions to protect flow and device performance.

A tube that flows freely on a straight bench can still fail when it is routed through a compact pump enclosure, wrapped around a patient support arm, or bent repeatedly during setup. Once the lumen partially collapses, the immediate effect may be reduced flow, unstable pressure, inaccurate delivery, poor aspiration, or nuisance alarms. In applications involving fluid transfer, drainage, ventilation support, or sampling, a kink can also create a difficult troubleshooting problem because the restriction may disappear as soon as the tubing is repositioned.

The practical answer is to select medical tubing PVC by evaluating the finished tube construction under its actual routing conditions, not by choosing the softest, hardest, or lowest-cost PVC grade. Kink resistance depends on the relationship between material hardness, outside diameter, wall thickness, unsupported span, bend radius, connector design, temperature, and the forces applied during use. A tube is suitable only when it maintains an open, stable lumen at the smallest bend and handling condition expected in the device or clinical workflow.

Start with the failure mode, not the material name

“Kink resistant” is often treated as a general product claim, but it has little decision value unless the anticipated failure is defined. A visible sharp fold is one form of kink, yet less obvious deformation can be equally important. A tube may flatten against a clamp, ovalize around a tight routing feature, or develop a local crease near a fitting. In each case, the bore can narrow enough to alter performance without looking completely blocked.

Before comparing medical tubing PVC options, identify where and when the tube is most likely to bend. The critical point may be near a luer-style connection, at the outlet of a pump, under a retention clip, at a Y-branch, or where the user naturally grips the line. This distinction matters because a material that performs well in a broad, unsupported curve may perform poorly where the tube exits a rigid connector at an acute angle.

Document the functional consequence of a restriction. The selection criteria for a gravity-fed drain line are different from those for a tube connected to a pressure-sensitive pump or a system that requires consistent aspiration. Consider whether the concern is:

  • complete flow interruption;
  • a gradual increase in flow resistance;
  • pressure variation caused by intermittent lumen collapse;
  • difficulty recovering the original tube shape after bending;
  • loss of visibility caused by stress whitening or permanent creasing; or
  • a user-created bend that occurs during normal handling rather than incorrect use.

This early definition prevents a common mistake: selecting a stiffer tube simply because it resists a hand-bent kink, even though its added stiffness makes assembly harder, increases connector stress, or reduces usability in the final set.

The geometry usually decides more than hardness alone

PVC hardness is important, but it is only one part of the structural picture. Softer formulations generally bend more easily and conform well to equipment routing. That flexibility can be useful, but it may also allow the tube wall to buckle when compressed into a tight radius. Harder PVC can better resist localized collapse, although excessive rigidity may create installation problems and place greater load on barbed fittings, solvent-bonded joints, or strain-relief features.

Wall thickness has a direct effect on how well the tube resists flattening. For a given outside diameter, a thicker wall usually supports the lumen more effectively during bending. The trade-off is reduced internal diameter unless the outer diameter is increased. A smaller bore may increase pressure drop, affect priming time, or interfere with the intended fluid path. Therefore, “add wall thickness” is not automatically a solution; it must be evaluated against flow and connection requirements.

The ratio between outside diameter and inside diameter is often more informative than either dimension by itself. A thin-wall tube with a large bore can be very flexible but prone to collapse in a tight bend. A more substantial wall can retain a more circular cross-section. However, a large outer diameter may be impractical where tubing must pass through clips, channels, housings, or densely arranged device assemblies.

Also examine dimensional tolerances. A design that only avoids kinking when the wall is at the upper end of its tolerance may not have enough production margin. Likewise, variation in inside diameter can change both the mechanical support of the wall and the flow behavior. The evaluation should be based on the dimensional range that may be supplied, rather than on one nominal sample.

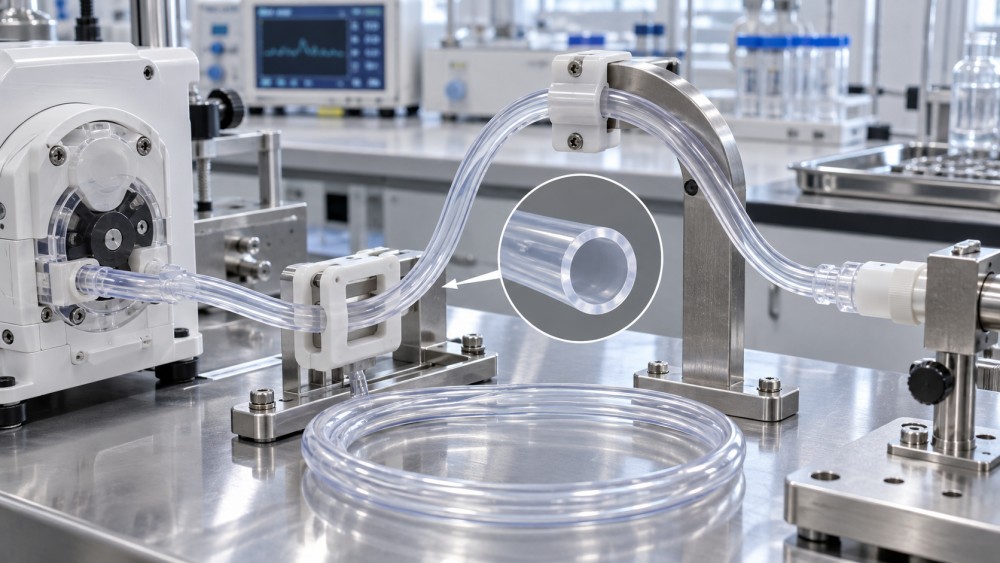

How to select medical tubing PVC for kink resistance

Define a meaningful bend-radius requirement

A minimum bend radius should represent the installed product, not an idealized loop made by hand. Review the physical path from source to destination and identify the tightest curve the tubing must negotiate. Include temporary conditions: packaging release, loading into a cassette, transport, user adjustment, and accidental side loading. A tube that survives only when carefully routed may not provide enough robustness for routine use.

When a supplier provides a bend-radius value, clarify how that value was obtained. A radius may refer to the point where the tube begins to deform visibly, the point of complete lumen closure, or a general handling recommendation. These are not interchangeable. For flow-critical assemblies, the acceptance criterion should be tied to lumen condition or functional output, not visual appearance alone.

Several physical details can make the real bend more severe than the measured radius suggests. A tube pulled tightly between two fixed points has less freedom to distribute the bend. A molded channel can force bending at a single location. A connector shoulder can act as a hard stop, creating a hinge effect immediately beyond the joint. These situations should be reproduced in the assessment fixture whenever possible.

Choose the PVC formulation around the application environment

Not all flexible PVC behaves the same way. Plasticizer type and content, additives, pigmentation, and processing conditions influence flexibility, recovery after deformation, transparency, surface feel, and aging behavior. Two tubes described with the same nominal hardness may not show identical kink performance because their formulations and extrusion quality differ.

Temperature deserves particular attention. Tubing stored in a cool area may feel noticeably firmer during installation than at normal operating temperature. Conversely, elevated temperatures can soften the wall and make a marginal bend more vulnerable to flattening. Evaluate the temperature range relevant to storage, assembly, transport, and use. This is especially important when the tube is routed through equipment that generates heat or when a set may be used in cooler clinical environments.

Contact with intended fluids can also change handling characteristics. Depending on the fluid and exposure duration, the tube may soften, stiffen, swell, or experience surface changes. These effects should not be assumed from generic PVC behavior. The relevant question is whether the tubing still maintains the required bore and routing performance after contact under realistic conditions.

Sterilization and post-processing can alter mechanical properties as well. A material selected from an unprocessed sample may not behave the same way after the chosen sterilization method, aging interval, or packaging cycle. Where these steps apply, assess kink resistance on tubing that represents the finished state rather than relying only on incoming-material observations.

Look closely at the connector transition

In many assemblies, the first kink does not occur along the free tube length. It occurs at the junction between tubing and connector because the connector is rigid while the tube is flexible. As the line is bent, stress concentrates at the point where flexibility begins. The problem can become more pronounced when tubing is stretched over a barb, compressed by a clamp, or constrained by adhesive, overmolding, or a rigid sleeve.

A strain-relief feature can reduce this concentrated bending, but only if its shape and stiffness are appropriate. A relief that is too short may simply move the kink a few millimeters farther along the tube. One that is too rigid may introduce a new leverage point. Evaluate the assembled interface while applying the direction of bending likely in use, including repeated bending if the line will be adjusted more than once.

Connector selection and tubing selection should therefore be treated as one design decision. A tube that performs well as bulk material can become unacceptable after joining. Check whether the assembly process causes wall thinning, distortion, residual stress, or a reduced internal passage at the connection.

Separate flexibility from recoverability

A tube may be easy to bend yet recover well after a mild bend, or it may remain visibly creased after being folded. These are different behaviors. Recoverability matters when the tube can be temporarily displaced during patient movement, transport, or device repositioning. A line that resumes its round profile after incidental handling is less likely to produce an ongoing restriction.

During evaluation, inspect what happens after the bending force is released. Does the lumen reopen immediately? Does a flat area remain? Is there a whitening mark, surface crease, or permanent change in curvature? Permanent deformation can indicate that the routing arrangement is too demanding even if initial flow testing remains acceptable.

Repeated flexing should also be considered where relevant. A single bend test may miss gradual damage from routine manipulation. Focus repeated-bend assessment on the most vulnerable locations: near fittings, at device exits, underneath retaining clips, and at any point where the tube rubs against an edge. The goal is not to create an arbitrary durability claim, but to determine whether expected handling progressively increases the risk of restriction.

A practical evaluation sequence for procurement and engineering review

Selection becomes more reliable when the tubing specification is translated into a short, application-specific evaluation sequence. Begin by gathering the dimensions, required flow range, expected pressure conditions, fluid contact, environmental exposure, connection method, and routing sketch. This information gives the material discussion a functional basis.

  1. Map the installed route. Mark tight turns, clips, entry ports, moving parts, and unsupported spans. Include the tubing position during setup and removal, not only during normal operation.
  2. Set the critical acceptance condition. Define whether the tube must remain visibly round, preserve a target flow behavior, avoid a pressure change, or reopen after bending. Use the condition that matters to device performance.
  3. Compare constructions before comparing suppliers. Review alternative outside diameters, wall thicknesses, and hardness ranges. A geometry adjustment may solve the issue more effectively than a minor change in material grade.
  4. Test the assembled configuration. Evaluate tubing with the intended fittings, clamps, adapters, and retention features. Bulk-coil observations alone are not enough.
  5. Challenge the likely misuse condition. Apply realistic side loading, tight routing, and handling forces that a user may create unintentionally. This helps reveal whether the design has practical margin.
  6. Review post-process samples. Where sterilization, aging, packaging compression, or fluid exposure are relevant, confirm the final-state behavior.

A simple comparison table can help keep the decision focused on functional differences rather than general descriptions.

Evaluation point Questions to resolve Potential selection response
Tight bend near device outlet Does the bore flatten at the connector edge? Revise strain relief, increase wall support, or change routing.
Required flow capacity Can a thicker wall be used without reducing the bore below need? Adjust both inner and outer diameter rather than wall alone.
Frequent handling Does the tube recover after repeated repositioning? Select a construction with better elastic recovery in the required range.
Processing exposure Does final-state tubing remain stable after the intended process? Verify on representative finished samples.

Signals that the specification is too vague

Specifications that call only for “soft PVC tubing” or “anti-kink tubing” leave too much room for interpretation. They do not identify the dimensions, routing severity, test condition, or allowable performance change. This can lead to acceptable incoming samples but inconsistent behavior after assembly.

A more useful specification links material and dimensions to the actual function. It may state the required nominal geometry and tolerances, expected flexibility range, permitted routing condition, interface requirements, transparency or appearance needs, fluid and processing exposure, and the method used to verify kink resistance. The verification method does not need to be unnecessarily complex, but it should be repeatable and connected to the intended use.

It is also wise to distinguish a tube that must resist accidental kinking from one that must remain flexible enough to be deliberately occluded by a clamp or valve. These requirements can conflict. A line designed for reliable manual shutoff may need different wall behavior from a line that must stay open during continuous flow.

When a PVC change is not the right correction

Changing medical tubing PVC is not always the most effective response to a kink problem. If the current tube only fails at one abrupt housing edge, a smoother guide path or larger-radius channel may solve the issue without altering the material. If a connector creates the bend concentration, improved strain relief may be more effective than selecting a harder tube. If the tube is under tension because its cut length is too short, correcting length and assembly routing may remove the root cause.

Material changes become appropriate when the current construction lacks sufficient structural support across the expected range of handling conditions, or when geometry and routing constraints cannot be changed. At that point, compare candidate tubing as part of the complete system and confirm that improved kink resistance does not introduce unacceptable effects on flow, connection integrity, flexibility, or process compatibility.

The strongest selection decision is therefore evidence-based and specific: the chosen tubing remains open and functional at the required route, retains acceptable behavior after relevant processing, and does not create a new problem at the connector or during use. That level of definition is more useful than relying on a broad “kink-resistant” label.
